Vacuum fittings and hoses

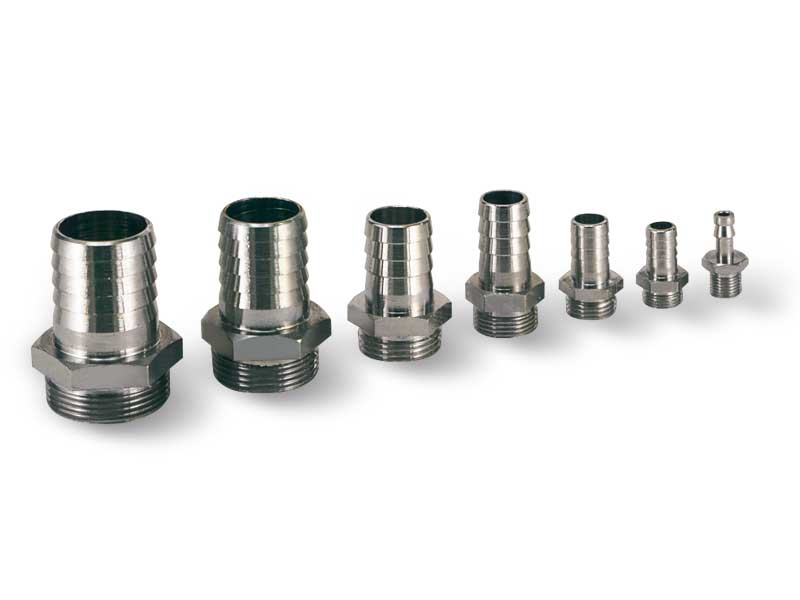

Hose ends

Hose ends

Our hose ends are traditional barbed nickel-plated and brass fittings.
They are suited for connecting smooth or reinforced flexible hoses with an internal diameter up to 76 mm.
Product codes: RS1/4 RS3/8 RS1/2 RS3/4 RS1 RS11/4 RS11/2 RS2 RS3

6.01
CAD files on TraceParts
Image zoom
top of page go down

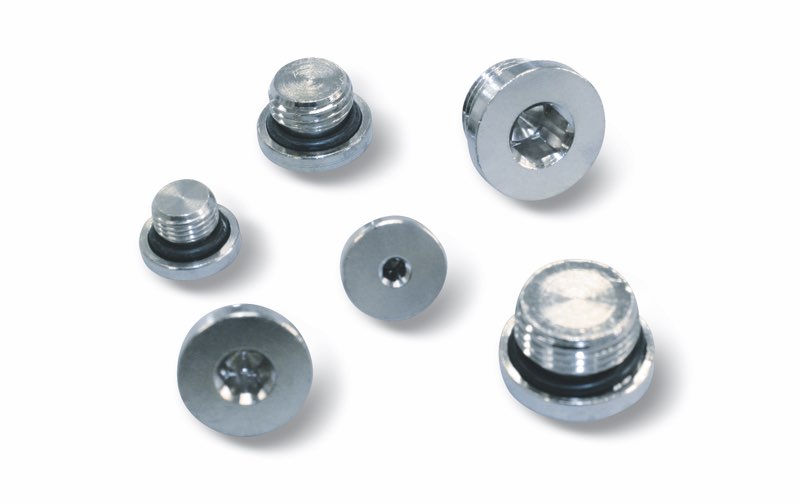

Fittings, caps and nylon seals

Fittings, caps and nylon seals

The fittings described on this page are particularly suitable for connecting vacuum cup holders to their manifolds and in all those cases that require a connection to vacuum sources via smooth flexible hoses with internal diameters of 4, 6 and 9 mm, which is the maximum allowed for a vacuum hose with no internal reinforcement.
These are semi-rapid fittings. The hose is fixed by manually screwing the reeded bush with no need for keys.
The threaded connections are male or female, according to the requirements. The range is completed by L and T-type fittings and caps with O-rings.
The fittings are a available in practical 10 or 50-piece packages and are supplied with their nylon seal.
Product codes: RMM5 RM1/8 RM1/4 RM3/8 RF1/8 RF1/4 RF3/8 GNM5 GN1/8 GN1/4 GN3/8 GN1/2 RLM5 RL1/8 RL1/4 RL3/8 RTM5 RT1/8 RT1/4 RT3/8 0015291 001144 001106 001833 0015273

Image zoom
top of page go down

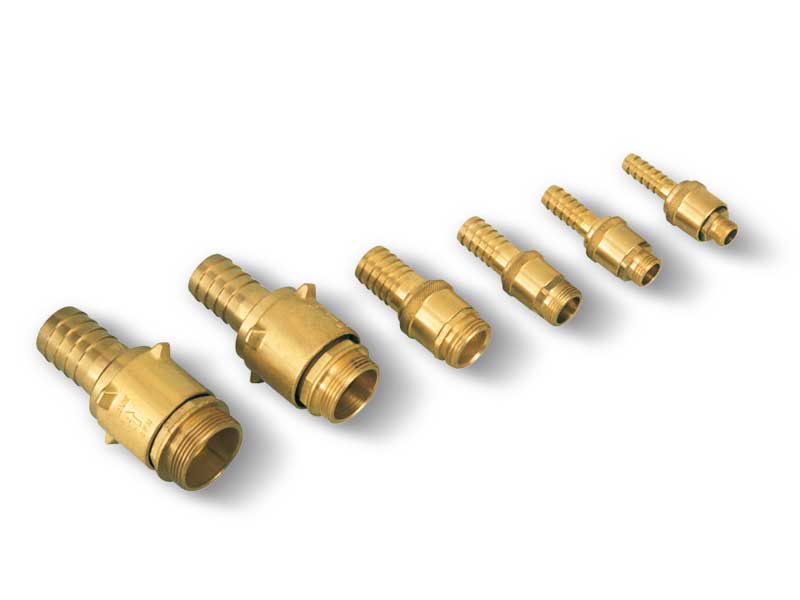

Rotating quick coupling fittings

Rotating quick coupling fittings

Quick coupling fittings are composed of a jack with hose end connector and a threaded male coupler which connects itself to the jack.
They are fixed by a ball ring pushed by a spring. A nitrile rubber seal guarantees a perfect vacuum seal.
The structure of this type of fitting allows the two components to rotate freely at a low speed and to rapidly couple and disconnect by manually acting on the jack reeded ring nut. These fittings are fully made with brass and are available in various sizes. The two components of the fittings are quick coupling and are not self-retaining.
These fittings are made entirely of brass and are available in various sizes.
Product codes: RR3/8 RR1/2 RR3/4 RR1 RR11/4 RR11/2 RRF3/8 RRF1/2 RRF3/4 RRF1 RRFF3/8 RRFF1/2 RRFF3/4 RRFF1

6.04
CAD files on TraceParts
Image zoom
top of page go down
Compressed air and vacuum flexible hoses

Compressed air and vacuum flexible hoses

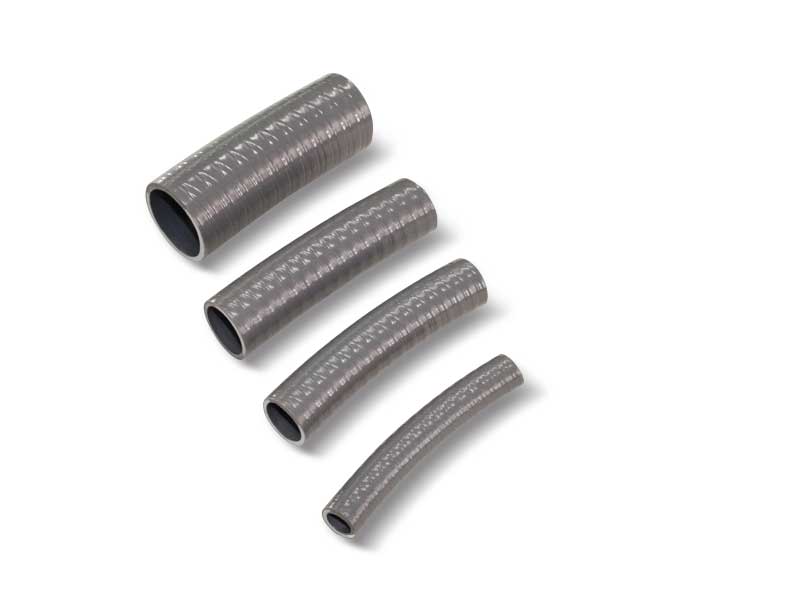

TPL flexible hoses are made with Polyamide 11 of vegetal derivation and are suited for compressed air and vacuum for internal diameters up to 9 mm, as well as for compressed air only. They feature a good flexibility and lightness, a very low water absorption and excellent mechanical performance. They also feature an excellent resistance to low and high temperatures, chemical agents, pneumatic pressure and ageing.
Our TPR flexible hoses have been specially designed for vacuum and are composed of a single piece with plastic insulation and self-extinguishing materials, including the hose reinforcement core. Their excellent flexibility ensures minimal bending radius and are very light in relation to their great resistance to crushing.
Their smooth inside allows reducing harmful load losses to the minimum. The excellent functionality of these flexible hoses is associated with a high resistance to abrasion, to weather agents and most chemical products. TPL flexible hose connection is ensured by the previously described fittings.
Product codes: TPL2 TPL4 TPL6 TPL8 TPL9 TPL12 TPL16 TPL18 TPR3/8 TPR1/2 TPR3/4 TPR1 TPR11/4 TPR11/2 TPR2

6.05
CAD files on TraceParts
Image zoom
top of page go down
TPR flexible hose fittings

TPR flexible hose fittings

As for TPR hoses, we have created a completely new line of RMTPR fittings for TPR hoses. RTPR fittings from 3/8” to 1” are made of self-extinguishing PVC. RMTPR in anodised aluminium.
The fittings are all extremely sturdy and offer a provide vacuum seal. The use of these fittings eliminates unsightly hose clamps and make the connection much faster and safer.
They are available in various sizes, depending on the diameter of the hose to be connected.
Product codes: RTPR3/8 RTPR1/2 RTPR3/4 RTPR1 RMTPR11/4 RMTPR11/2 RMTPR2

6.06
CAD files on TraceParts
Image zoom
